#   RUNME.setup
#  This helps set up your kernal's environment in order to avoid errors
import os

import numpy as np
from matplotlib import pyplot as plt

from canopyhydro.Cylinder import Cylinder
from canopyhydro.CylinderCollection import CylinderCollection
from canopyhydro.Forester import Forester

# Determines where configuration file is located
# file contains directory info and model input settings
config_file = os.environ[
    "CANOPYHYDRO_CONFIG"
] = f"{os.getcwd()}/canopyhydro_config.toml"
log_config = os.environ["CANOPYHYDRO_LOG_CONFIG"] = f"{os.getcwd()}/logging_config.yml"

Cylinder

The Cylinder class is used to represent the 3-D cylinders that make up a QSM

[4]:

# A trivial example of a Cylinder object


myCyl = Cylinder(
    cyl_id=1.0,
    x=[3, 6],
    y=[2, 4],
    z=[6, 12],
    radius=2.0,
    length=0.064433,
    branch_order=0.0,
    branch_id=0.0,
    volume=0.010021,
    parent_id=0.0,
    reverse_branch_order=32.0,
    segment_id=0.0,
)
print(myCyl)

Cylinder( cyl_id=1.0, x=[3, 6], y=[2, 4], z=[6, 12], radius=2.0, length=0.064433, branch_order=0.0, branch_id=0.0, volume=0.010021, parent_id=0.0, reverse_branch_order=32.0, segment_id=0.0

The most important function of Cylinder objects is their ability to return data regarding the projections onto planes. Cylinder objects utilize our custom ‘geometry’ module to calculate their projections onto the XY, XZ and YZ planes.

For more on this, see Projecting Cylinders

[10]:

# Projecting a cylinder onto the XY plane
import numpy as np

from canopyhydro.Cylinder import Cylinder
from canopyhydro.CylinderCollection import CylinderCollection

cyl = Cylinder(
    1, np.array([0, 1]), np.array([0, 1]), np.array([0, 1]), 1, 1, 0, 0, 1, 0, 0, 0
)
cyl.get_projection("XY")
print(cyl.projected_data["XY"]["polygon"])
print(cyl.projected_data["XY"]["base_vector"])
print(cyl.projected_data["XY"]["anti_vector"])
print(cyl.projected_data["XY"]["angle"])
print(cyl.projected_data["XY"]["area"])

POLYGON ((0.7055547485197222 -0.7086486608663443, 0.6927794439882502 -0.7206122246452861, 0.6793868045462438 -0.7318989317552199, 0.6654090505126061 -0.7424887326410364, 0.6508814456329607 -0.7523657839197849, 0.6358418765269868 -0.761518538618793, 0.6203303971002122 -0.7699397615971714, 0.6043887500439113 -0.777626472292711, 0.5880598778050475 -0.7845798192275877, 0.5713874351273125 -0.7908048926864933, 0.5544153144933113 -0.7963104835647774, 0.5371871946141021 -0.8011087975191887, 0.5197461206122052 -0.8052151342206525, 0.5021341228348492 -0.8086475417192888, 0.4843918794234269 -0.8114264557256392, 0.4665584259537658 -0.8135743330482637, 0.4486709137372394 -0.8151152875793871, 0.4307644168049181 -0.8160747361660723, 0.4128717862361091 -0.81647906052316, 0.3950235493693495 -0.8163552901089949, 0.3772478505606316 -0.8157308096593167, 0.3595704295270235 -0.8146330939104094, 0.3420146329184335 -0.813089470978599, 0.3246014545714764 -0.811126914925819, 0.3073495998873245 -0.8087718672450097, 0.290275569907372 -0.8060500863494255, 0.2733937609038954 -0.8029865236433437, 0.2567165756266195 -0.7996052243790617, 0.2402545427223602 -0.7959292512531837, 0.2240164412495102 -0.7919806285483623, 0.2080094276222298 -0.7877803045682026, 0.1922391627249603 -0.7833481301263573, 0.1767099373244321 -0.7787028509202096, 0.1614247942654083 -0.7738621117306963, 0.1463856462625561 -0.7688424705301826, 0.1315933883913461 -0.7636594207391983, 0.1170480046348049 -0.7583274200414502, 0.1027486680610392 -0.7528599243378058, 0.0886938343903684 -0.7472694255884285, 0.0748813288632188 -0.7415674924539188, 0.061308426443543 -0.7357648127983645, 0.0479719254905637 -0.7298712372577524, 0.0348682151073508 -0.7238958232052886, 0.0219933364311366 -0.7178468785603557, 0.0093430381703601 -0.7117320049902478, -0.0030871732801796 -0.7055581401438671, -0.0153019887994878 -0.6993315986349682, -0.0273062562232358 -0.6930581115600766, -0.0391049443978219 -0.6867428643938861, -0.0507031112609087 -0.680390533153648, -0.0621058756146832 -0.674005318764837, -0.0733183922721946 -0.6675909795940658, -0.0843458302733461 -0.661150862142771, -0.0951933538847147 -0.6546879299173791, -0.1058661061157358 -0.6482047905092289, -0.1163691945023672 -0.641703720931191, -0.1267076789278345 -0.6351866912682232, -0.136886561268094 -0.6286553867066296, -0.1469107766670601 -0.6221112280119577, -0.1567851862632475 -0.6155553905287505, -0.1665145712052036 -0.6089888217770355, -0.1761036278078615 -0.6024122577208589, -0.1855569637157113 -0.5958262377835759, -0.1948790949514776 -0.5892311186832065, -0.2040744437407678 -0.5826270871591742, -0.213147337014027 -0.5760141716592699, -0.2221020054970459 -0.5693922530529014, -0.230942583310351 -0.5627610744336571, -0.2396731080060256 -0.5561202500710708, -0.2482975209780038 -0.5494692735682325, -0.2568196681886216 -0.5428075252786534, -0.265243301160299 -0.5361342790325831, -0.2735720781867121 -0.5294487082198208, -0.2818095657226979 -0.5227498912730146, -0.2899592399165438 -0.5160368165924882, -0.2980244882522005 -0.5093083869508169, -0.3060086112724441 -0.5025634234126783, -0.3139148243570635 -0.4958006688029721, -0.3217462595328715 -0.4890187907537801, -0.3295059672946971 -0.4822163843585018, -0.337196918418591 -0.475391974459369, -0.344822005750257 -0.468544017592593, -0.3523840459532637 -0.4616709036135613, -0.359885781202887 -0.4547709570228152, -0.3673298808125219 -0.4478424380119915, -0.3747189427804962 -0.4408835432474799, -0.3820554952458164 -0.4338924064082732, -0.3893419978419239 -0.4268670984933031, -0.3965808429379147 -0.4198056279125201, -0.4037743567569047 -0.4127059403750534, -0.4109248003613197 -0.4055659185869789, -0.4180343704948377 -0.3983833817705406, -0.4251052002705446 -0.3911560850161054, -0.4321393596945685 -0.383881718477677, -0.4391388560140332 -0.3765579064224782, -0.4461056338776438 -0.3691822061448938, -0.4530415752965515 -0.3617521067550056, -0.4599484993923817 -0.3542650278519916, -0.4668281619184035 -0.3467183180928712, -0.4736822545388206 -0.339109253667407, -0.4805124038500116 -0.3314350366904837, -0.4873201701263032 -0.3236927935239349, -0.4941070457714587 -0.3158795730406438, -0.5008744534555515 -0.3079923448447743, -0.5076237439152422 -0.3000279974632291, -0.5143561933936759 -0.2919833365249203, -0.5210730006942992 -0.2838550829461442, -0.5277752838208069 -0.2756398711423602, -0.53446407617322 -0.2673342472889547, -0.5411403222677194 -0.2589346676562012, -0.5478048729453583 -0.2504374970465884, -0.5544584800321164 -0.2418390073660721, -0.561101790409973 -0.2331353763645797, -0.5677353394557562 -0.2243226865853769, -0.5743595438014955 -0.2153969245676656, -0.580974693366879 -0.2063539803521097, -0.5875809426112121 -0.1971896473449251, -0.5941783009490393 -0.1878996226027388, -0.6007666222703562 -0.1784795076077271, -0.6073455935031509 -0.1689248096105697, -0.6139147221529605 -0.1592309436276274, -0.6204733227512649 -0.149393235188444, -0.6270205021419827 -0.1394069239403035, -0.6335551435332125 -0.1292671682281142, -0.6400758892397821 -0.1189690507804404, -0.6465811220413709 -0.1085075856460081, -0.6530689450811008 -0.0978777265395345, -0.6595371602308326 -0.0870743767712113, -0.6659832448522456 -0.0760924009505614, -0.6724043268874385 -0.0649266386726187, -0.6787971582196869 -0.0535719204122682, -0.6851580862545552 -0.0420230858709856, -0.691483023684323 -0.030275005038799, -0.6977674164152208 -0.018322602252764, -0.7040062096579403 -0.0061608835510669, -0.7101938122080033 0.0062150323614731, -0.7163240589746696 0.0188098792060368, -0.7223901718559587 0.0316282039382399, -0.7283847191040086 0.0446743229220967, -0.7342995733803309 0.057952273116563, -0.7401258687655152 0.0714657579257982, -0.745853957063534 0.0852180873770077, -0.7514733638278601 0.0992121123130888, -0.7569727446358806 0.1134501523237356, -0.7623398422500517 0.1279339171907024, -0.7675614454291246 0.1426644216935309, -0.7726233502902727 0.1576418937141919, -0.777510325272263 0.1728656756960196, -0.7822060809093063 0.1883341196571653, -0.7866932457923251 0.2040444761345575, -0.7909533502654222 0.2199927776437158, -0.794966819575187 0.2361737174846068, -0.7987129783525699 0.252580525005119, -0.8021700684529729 0.2692048387511439, -0.80531528229976 0.2860365792834941, -0.8081248139574913 0.3030638238222093, -0.8105739301899368 0.3202726852807528, -0.8126370637189466 0.3376471986651436, -0.814287930777089 0.3551692182215297, -0.8154996748228801 0.3728183291011376, -0.8162450379463569 0.3905717776508622, -0.8164965610207151 0.4084044247040278, -0.8162268130423783 0.4262887264086602, -0.8154086493423686 0.4441947471576499, -0.8140154974488681 0.4620902090435216, -0.8120216683465209 0.4799405819193441, -0.8094026897356591 0.4977092175803609, -0.8061356566799797 0.515357530770148, -0.8021995937928458 0.532845228653828, -0.7975758219111152 0.5501305890972729, -0.7922483211122132 0.5671707865712363, -0.786204081022744 0.5839222628081372, -0.7794334287247852 0.6003411375420037, -0.7719303242641451 0.616383652842104, -0.763692613866814 0.632006642806133, -0.7547222315203778 0.6471680188162006, -0.7450253405956502 0.6618272592883419, -0.7346124086591418 0.6759458919638907, -0.7234982105148698 0.689487956381826, -0.7117017567372352 0.7024204342918837, -0.7070306424686519 0.7070306424686519, -0.7071067811865476 0.7071067811865476, 0.2928932188134524 1.7071067811865475, 0.292969357531348 1.7070306424686519, 0.3007538525912017 1.714713636442557, 0.313841646670986 1.7263415353923266, 0.3275310705289108 1.7372820356944092, 0.3417883322084627 1.747517174907592, 0.356576801490866 1.7570332512720226, 0.371857449443115 1.7658208764237213, 0.3875893170067164 1.773874954061725, 0.4037300003051736 1.7811945878880078, 0.4202361403636406 1.7877829242886305, 0.4370639054681907 1.7936469370153314, 0.4541694553806597 1.7987971624907408, 0.471509377979925 1.8032473952616899, 0.489041090518847 1.8070143535605634, 0.5067231994593613 1.8101173249305886, 0.5245158146712108 1.8125778014774983, 0.5423808155576559 1.8144191135941967, 0.5602820683252652 1.8156660700437288, 0.578185595084233 1.816344611158542, 0.5960596967104048 1.8164814806971856, 0.613875032398947 1.8161039206619238, 0.6316046595883158 1.8152393921800862, 0.6492240384415988 1.8139153244337884, 0.6667110053609246 1.8121588926194068, 0.6840457201070964 1.8099968250503737, 0.7012105910325372 1.807455238793954, 0.71819018274397 1.804559502655354, 0.7349711102240057 1.801334125884361, 0.75154192308756 1.7978026706693055, 0.7678929832558364 1.7939876862858326, 0.7840163389195337 1.7899106626674217, 0.7999055972517952 1.7855920011440585, 0.8155557979340072 1.7810510001387028, 0.8309632891839002 1.776305853703123, 0.8461256076323035 1.7713736609018986, 0.8610413630863489 1.7662704442042227, 0.875710128944702 1.761011175207885, 0.8901323387945563 1.7556098061905354, 0.9043091895193891 1.7500793061537925, 0.9182425510787038 1.7444317001912686, 0.9319348829834075 1.738678111168737, 0.9453891573800489 1.732828802851122, 0.9586087885706603 1.7268932237454224, 0.9715975687292824 1.7208800510503117, 0.984359609528348 1.7147972342119306, 0.9968992893551921 1.7086520376815417, 1.009221205778446 1.7024510825548362, 1.0213301329137072 1.6962003868455502, 1.03323098333563 1.689905404208528, 1.044928774187713 1.6835710609804537, 1.056428597150096 1.6772017914510826, 1.0677355919383413 1.670801571314928, 1.0788549230214501 1.6643739492838692, 1.0897917592643616 1.6579220768659142, 1.1005512562182267 1.651448736335148, 1.1111385408002799 1.6449563669334186, 1.121558698123705 1.6384470893562417, 1.1318167602561795 1.631922728584236, 1.1419176967035314 1.6253848351277167, 1.151866406431961 1.61883470475623, 1.1616677112584637 1.6122733967872591, 1.1713263504543203 1.6057017510093408, 1.1808469764208023 1.599120403314707, 1.1902341513094987 1.592529800115559, 1.1994923444719707 1.5859302116163443, 1.208625930634746 1.5793217440121707, 1.2176391887060567 1.57270435068084, 1.2265363011302155 1.5660778424330701, 1.2353213537141654 1.5594418968823762, 1.2439983358585964 1.5527960669928793, 1.2525711411331217 1.5461397888600703, 1.2610435681414325 1.5394723887763258, 1.2694193216281078 1.5327930896297834, 1.2777020137839628 1.5261010166820874, 1.2858951657114353 1.5193952027674997, 1.2940022090156669 1.5126745929529952, 1.3020264874906133 1.5059380486961969, 1.3099712588727794 1.4991843515353898, 1.3178396966380659 1.492412206343385, 1.325634891819738 1.4856202441746607, 1.3333598548277552 1.4788070247330372, 1.3410175172516086 1.4719710384850944, 1.348610733630488 1.4651107084426507, 1.3561422831760046 1.4582243916358582, 1.3636148714338916 1.4513103802968557, 1.3710311318720891 1.444366902772434, 1.378393627383419 1.4373921241828063, 1.3857048516916757 1.4303841468423566, 1.3929672306504137 1.4233410104571256, 1.400183123424021 1.4162606921128182, 1.4073548235408244 1.4091411060662453, 1.4144845598079971 1.4019801033523769, 1.4215744970779283 1.394775471218551, 1.4286267368554835 1.3875249323968777, 1.4356433177352237 1.3802261442254897, 1.4426262156571752 1.3728766976290254, 1.4495773439691424 1.36547411596859, 1.4564985532828494 1.358015853771428, 1.4633916311103494 1.3504992953506685, 1.4702583012662032 1.34292175332577, 1.477100223019839 1.335280467054708, 1.4839189899813228 1.3275726009895321, 1.4907161287024315 1.3197952429676691, 1.4974930969734763 1.3119454024522819, 1.5042512817947338 1.3040200087361404, 1.5109919969996237 1.2960159091248127, 1.517716480504905 1.287929867116582, 1.524425891161167 1.2797585605983501, 1.5311213051747354 1.2714985800789316, 1.5378037120698291 1.263146426983586, 1.5444740101573553 1.2546985120364398, 1.551133001474157 1.2461511537606063, 1.5577813861537941 1.2375005771293914, 1.5644197561871 1.228742912405994, 1.5710485885277579 1.219874194213621, 1.5776682374950797 1.2108903608829822, 1.584278926422992 1.2017872541297479, 1.5908807385010073 1.1925606191208094, 1.5974736067497277 1.1832061049951044, 1.604057303070199 1.1737192659124374, 1.610631426303307 1.1640955627121583, 1.6171953892324442 1.154330365272848, 1.623748404459941 1.1444189556743072, 1.630289469085405 1.1343565322742313, 1.6368173481122401 1.1241382148239967, 1.6433305565074043 1.1137590507610018, 1.6498273398391015 1.1032140228290355, 1.6563056534178071 1.0924980581931358, 1.6627631398680773 1.081606039231364, 1.6691971050622976 1.0705328162027226, 1.6756044923532536 1.0592732220080454, 1.6819818550505752 1.047822089278847, 1.6883253270971965 1.036174270047658, 1.694630591916554 1.0243246582719474, 1.7008928494198972 1.012268215501945, 1.7071067811865475 1, 1.7071067811865475 0.9999999999999998, 1.7132665138589451 0.9875151996348865, 1.7193655808296884 0.9748091688878777, 1.7253968823404577 0.9618774703174509, 1.7313526441635505 0.9487159208349948, 1.7372243750968257 0.9353206431433718, 1.7430028235730284 0.9216881226820279, 1.7486779337656866 0.9078152704045962, 1.7542388016668713 0.8936994916853315, 1.7596736317176722 0.8793387616068311, 1.7649696946906661 0.8647317068205472, 1.770113287654922 0.8498776940905957, 1.7750896969976253 0.8347769255272534, 1.7798831656310838 0.8194305403860189, 1.7844768656775423 0.8038407231481788, 1.7888528780938655 0.7880108174065364, 1.7929921808693186 0.7719454448530824, 1.7968746475965824 0.7556506284022838, 1.8004790583713068 0.739133918184136, 1.8037831251096352 0.722404518806347, 1.806763533475093 0.7054734159185241, 1.8093960036629888 0.6883534997189222, 1.811655372287373 0.6710596826354873, 1.8135156975366242 0.653609008000322, 1.81495038959218 0.6360207461371238, 1.8159323680242552 0.6183164739156477, 1.8164342474734188 0.6005201335208182, 1.8164285523851826 0.5826580659656443, 1.8158879608785283 0.564759014778021, 1.8147855769971704 0.5468540953447967, 1.8130952296215144 0.5289767256342404, 1.810791795227253 0.5111625144692783, 1.8078515404927495 0.4934491042111024, 1.804252479523993 0.4758759656487898, 1.799974739237794 0.4584841440751037, 1.795000925287278 0.4413159569448355, 1.7893164799034582 0.4244146451245806, 1.7829100222420806 0.4078239814963779, 1.7757736613440929 0.3915878424977104, 1.7679032717111878 0.3757497499756175, 1.7592987218199836 0.3603523923999496, 1.7499640466822795 0.3454371359115821, 1.7399075568092086 0.3310435367705419, 1.729141877626351 0.3172088674237017, 1.71768391545405 0.3039676685611681, 1.7070712498977356 0.2929287501022643, 1.7071067811865475 0.2928932188134524, 0.7071067811865476 -0.7071067811865476, 0.7070712498977356 -0.7070712498977356, 0.7055547485197222 -0.7086486608663443))
[0.57735027 0.57735027 0.57735027]
[-0.57735027 -0.57735027 -0.57735027]
0.6154797086703873
4.642087600836025

The main use of this functionality is shown below. Namely, projecting cylinders allows us to more readily provide visualizations of the tree canopy they represent

[5]:

# Here we show the 3D view and the 3 possible 2D projections of a Cylinder object
myCyl = Cylinder(
    cyl_id=1.0,
    x=[0, 3],
    y=[0, 2],
    z=[0, 6],
    radius=2.0,
    length=0.064433,
    branch_order=0.0,
    branch_id=0.0,
    volume=0.010021,
    parent_id=0.0,
    reverse_branch_order=32.0,
    segment_id=0.0,
)


fig = myCyl.draw_3D(show=False, draw_projections=True)

2024.10.14 22:21:30.286 |MainThread   | INFO    | geometry.py:617 -    draw_cylinders_3D() | model - Plotting cylinder in 3D

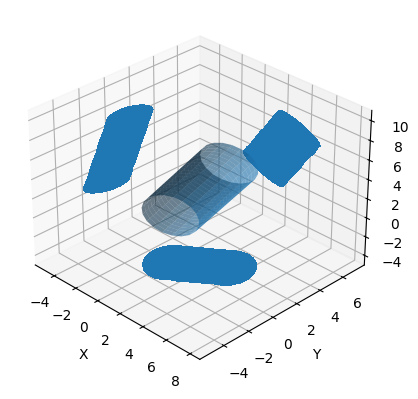

../_images/examples_intro_to_common_objects_7_1.png

In the above 3D representations, the entire surface of cylinder must be calculated, s this may be computationally intensive.

As such, the ‘get_projection’ function calculates statistics regarding 2D projections directly instead.

[6]:

# The get_projection function allows for the retrieval of
# projection data without the need to define the entire surface of the cylinder


myCyl = Cylinder(
    cyl_id=1.0,
    x=[3, 6],
    y=[2, 4],
    z=[6, 12],
    radius=2.0,
    length=0.064433,
    branch_order=0.0,
    branch_id=0.0,
    volume=0.010021,
    parent_id=0.0,
    reverse_branch_order=32.0,
    segment_id=0.0,
)

print("'myCyl' as seen from above")
myCyl.get_projection("XY")
myCyl.draw(plane="XY")
plt.show()
print("'myCyl' as seen from above")
print(
    f"The 'XY' projection of myCyl as an area of {round(myCyl.projected_data['XY']['area'],2)} cm^3"
)
print(
    f"       and the cylinder makes an angle of {round(myCyl.projected_data['XY']['angle'],2)} radians with the XY plane"
)


print("'myCyl' as seen from the 'fromt' of the tree")
myCyl.get_projection("XZ")
myCyl.draw(plane="XZ")
plt.show()
print(
    f"The 'XZ' projection of myCyl as an area of {round(myCyl.projected_data['XZ']['area'],2)} cm^3"
)
print(
    f"       and the cylinder makes an angle of {round(myCyl.projected_data['XZ']['angle'],2)} radians with the XZ plane"
)

print("'myCyl' as seen from one 'side' of the tree")
myCyl.get_projection("YZ")
myCyl.draw(plane="YZ")
plt.show()
print(
    f"The 'YZ' projection of myCyl as an area of {round(myCyl.projected_data['YZ']['area'],2)} cm^3"
)
print(
    f"       and the cylinder makes an angle of {round(myCyl.projected_data['YZ']['angle'],2)} radians with the YZ plane"
)

'myCyl' as seen from above

2024.10.14 22:21:35.784 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_9_2.png

'myCyl' as seen from above
The 'XY' projection of myCyl as an area of 25.19 cm^3
       and the cylinder makes an angle of 1.03 radians with the XY plane
'myCyl' as seen from the 'fromt' of the tree

2024.10.14 22:21:36.093 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_9_5.png

The 'XZ' projection of myCyl as an area of 30.42 cm^3
       and the cylinder makes an angle of 0.29 radians with the XZ plane
'myCyl' as seen from one 'side' of the tree

2024.10.14 22:21:36.325 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_9_8.png

The 'YZ' projection of myCyl as an area of 30.68 cm^3
       and the cylinder makes an angle of 0.44 radians with the YZ plane

For more information regarding these 2D projections, see Projecting Cylinders

Cylinder Collection

Cylinder Collections are just as they sound and, at the most basic level, a Cylinder Collection is defined as a list of 1 or more Cylinder objects.
Cylinder Collections almost always represent QSM’s (or parts of a QSM), and are meant to help users explore their QSMs.
Below, we demonstrate how one might initialize a cylinder collection using cylinder data (e.g. QSM data) stored in a CSV file.

[13]:

# Example showing the most basic possible cylinder Collection4
myCollection = CylinderCollection()
# The below file is one of our several testing files, featuring only
# the trunk of a tree and one of its branches
myCollection.from_csv("5_SmallTree.csv")

2024.10.14 18:34:11.877 |MainThread   | INFO    | CylinderCollection.py:295 -             from_csv() | model - Processing <_io.TextIOWrapper name='./data/input/5_SmallTree.csv' mode='r' encoding='UTF-8'>

{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}
{'cyl_id': 1, 'parent_id': 2, 'x': [3, 6], 'y': [4, 7], 'z': [5, 8], 'radius': 9, 'volume': 10, 'length': 12, 'segment_id': 15, 'branch_order': 20, 'reverse_branch_order': 21, 'branch_id': 24}

2024.10.14 18:34:11.958 |MainThread   | INFO    | CylinderCollection.py:323 -             from_csv() | model - ./data/input/5_SmallTree.csv initialized with 517 cylinders

2024.10.14 18:34:11.966 |MainThread   | INFO    | CylinderCollection.py:338 -    project_cylinders() | model - Projection into XY axis begun for file 5_SmallTree.csv

2024.10.14 18:34:14.668 |MainThread   | INFO    | CylinderCollection.py:347 -    project_cylinders() | model - Projection into XY axis complete for file 5_SmallTree.csv

2024.10.14 18:34:14.671 |MainThread   | WARNING | CylinderCollection.py:497 -        get_end_nodes() | model - Graph not initialized, running initialize_graph_from with default values

2024.10.14 18:34:15.260 |MainThread   | INFO    | CylinderCollection.py:774 - find_flow_components() | model - 5_SmallTree.csv found to have 70 drip components

reached_End of find flows

2024.10.14 18:34:15.269 |MainThread   | INFO    | CylinderCollection.py:845 -      calculate_flows() | model - np flow chars [Flow(num_cylinders=216.0, projected_area=16.51706021532694, surface_area=19.495074988550606, angle_sum=180.03288665020426, volume=3.9062960000000007, sa_to_vol=83646.49652248439, drip_node_id=0.0, drip_node_loc=(-0.299115, 2.537844, -0.598273)), None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None, None]

2024.10.14 18:34:15.274 |MainThread   | INFO    | CylinderCollection.py:846 -      calculate_flows() | model -  flow chars []

2024.10.14 18:34:15.277 |MainThread   | INFO    | CylinderCollection.py:848 -      calculate_flows() | model -  togetha [Flow(num_cylinders=216.0, projected_area=16.51706021532694, surface_area=19.495074988550606, angle_sum=180.03288665020426, volume=3.9062960000000007, sa_to_vol=83646.49652248439, drip_node_id=0.0, drip_node_loc=(-0.299115, 2.537844, -0.598273))]

2024.10.14 18:34:15.454 |MainThread   | INFO    | CylinderCollection.py:1003 -           statistics() | model - Found hull alpha shape stats

2024.10.14 18:34:15.914 |MainThread   | INFO    | CylinderCollection.py:1023 -           statistics() | model - found projected areas

2024.10.14 18:34:16.689 |MainThread   | INFO    | utils.py:150 -            save_file() | model - [['total_psa', 'psa_w_overlap', 'stem_psa', 'stem_psa_w_overlap', 'tot_surface_area', 'stem_surface_area', 'tot_hull_area', 'tot_hull_boundary', 'stem_hull_area', 'stem_hull_boundary', 'num_drip_points', 'max_bo', 'topQuarterTotPsa', 'topHalfTotPsa', 'topThreeQuarterTotPsa', 'TotalShade', 'top_quarter_shade', 'top_half_shade', 'top_three_quarter_shade', 'DBH', 'volume', 'X_max', 'Y_max', 'Z_max', 'X_min', 'Y_min', 'Z_min', 'Order_zero_angle_avg', 'Order_zero_angle_std', 'Order_one_angle_avg', 'Order_one_angle_std', 'Order_two_angle_avg', 'Order_two_angle_std', 'Order_three_angle_avg', 'Order_three_angle_std', 'order_gr_four_angle_avg', 'order_gr_four_angle_std', 'file_name']]

2024.10.14 18:34:16.696 |MainThread   | INFO    | utils.py:177 -            save_file() | model - attempting to write to ./data/output//statistics/5_SmallTree__statistics.csv

2024.10.14 18:34:16.703 |MainThread   | INFO    | CylinderCollection.py:1003 -           statistics() | model - Found hull alpha shape stats

2024.10.14 18:34:17.101 |MainThread   | INFO    | CylinderCollection.py:1023 -           statistics() | model - found projected areas

2024.10.14 18:34:17.737 |MainThread   | INFO    | utils.py:150 -            save_file() | model - [['total_psa', 'psa_w_overlap', 'stem_psa', 'stem_psa_w_overlap', 'tot_surface_area', 'stem_surface_area', 'tot_hull_area', 'tot_hull_boundary', 'stem_hull_area', 'stem_hull_boundary', 'num_drip_points', 'max_bo', 'topQuarterTotPsa', 'topHalfTotPsa', 'topThreeQuarterTotPsa', 'TotalShade', 'top_quarter_shade', 'top_half_shade', 'top_three_quarter_shade', 'DBH', 'volume', 'X_max', 'Y_max', 'Z_max', 'X_min', 'Y_min', 'Z_min', 'Order_zero_angle_avg', 'Order_zero_angle_std', 'Order_one_angle_avg', 'Order_one_angle_std', 'Order_two_angle_avg', 'Order_two_angle_std', 'Order_three_angle_avg', 'Order_three_angle_std', 'order_gr_four_angle_avg', 'order_gr_four_angle_std', 'file_name']]

2024.10.14 18:34:17.740 |MainThread   | INFO    | utils.py:177 -            save_file() | model - attempting to write to ./data/output//statistics/5_SmallTree__statistics.csv

[13]:

'./data/output//statistics/5_SmallTree__statistics.csv'

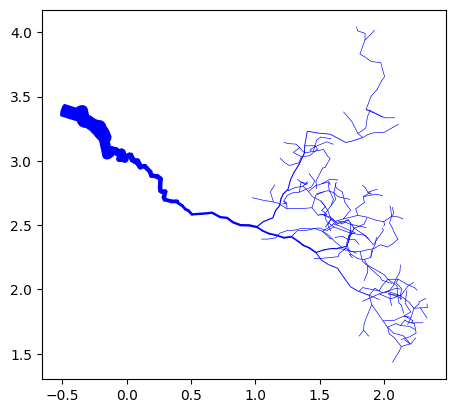

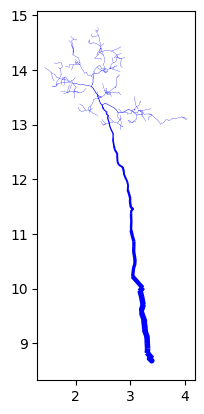

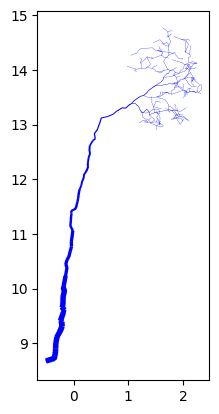

The below demonstrates how these projection and drawing functionality of the cylinder class can be extended to allow for drawing, highlighting and filtering entire tree canopies.

We recommend sticking to 2D drawings when exploring your data as this is a lot less computationally intensive than the alternative. However the same ‘.draw’ function can generate 3D plots of cylinder collections!

[9]:

myCollection = CylinderCollection()
# The below file is one of our several testing files, featuring only
# the trunk of a tree and one of its branches
myCollection.from_csv("charlie_brown.csv")

# by filtering for cyl_id>100, we are only plotting the
# cylinders that are part of the branch
myCollection.draw("XZ", show=True, save=False)
myCollection.draw("XY", show=True, save=False)
myCollection.draw("YZ", show=True, save=False)
# myCollection.draw("3D", show=False, save=False, file_name_ext="2d_3d_comparison")


print("XZ Projection of a collection of cylinders")

2024.10.14 22:24:00.333 |MainThread   | INFO    | CylinderCollection.py:400 -                 draw() | model - 463 cylinders matched criteria

2024.10.14 22:24:00.339 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_15_2.png

2024.10.14 22:24:00.678 |MainThread   | INFO    | CylinderCollection.py:400 -                 draw() | model - 463 cylinders matched criteria

2024.10.14 22:24:00.682 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_15_5.png

2024.10.14 22:24:01.040 |MainThread   | INFO    | CylinderCollection.py:400 -                 draw() | model - 463 cylinders matched criteria

2024.10.14 22:24:01.043 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

../_images/examples_intro_to_common_objects_15_8.png

XZ Projection of a collection of cylinders

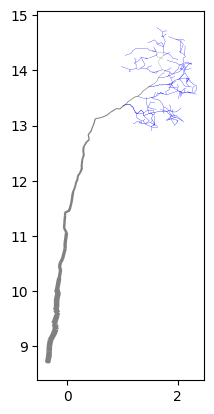

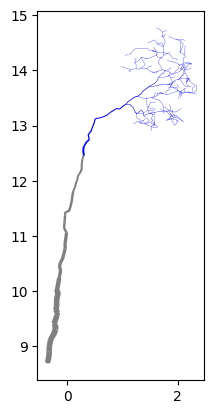

This same ‘draw’ function can also be used to highlight features (that is, groups of cylinders) of interest in a collection, and to filter a collection to only display smaller sections.

[10]:

myCollection = CylinderCollection()
# The below file is one of our several testing files, featuring only
# the trunk of a tree and one of its branches
# myCollection.from_csv("10_MediumCollection.csv")

myCollection.draw(
    "XZ",
    filter_lambda=lambda: cyl_id > 50,
    highlight_lambda=lambda: branch_order > 0
)  # noqa


myCollection.draw(
    "XZ",
    filter_lambda=lambda: cyl_id > 50,
    highlight_lambda=lambda: cyl_id > 100
)

2024.10.14 22:24:21.455 |MainThread   | INFO    | CylinderCollection.py:400 -                 draw() | model - 462 cylinders matched criteria

2024.10.14 22:24:21.460 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

2024.10.14 22:24:21.749 |MainThread   | INFO    | CylinderCollection.py:400 -                 draw() | model - 462 cylinders matched criteria

2024.10.14 22:24:21.751 |MainThread   | INFO    | geometry.py:563 -            draw_cyls() | model - Plotting cylinder collection

[10]:

<Axes: >

../_images/examples_intro_to_common_objects_17_5.png

../_images/examples_intro_to_common_objects_17_6.png

To understand how these features support canoPyHydro’s titular ‘flow identification’ functionality, check out Flow Identification and Drawing

Forester

Forester objects allow users to conveniently create and manage Cylinder Collections. In particular, Foresters are useful for reading in and processing QSM files.

When a Forester object is created, available file names are read from the default directory, ‘./data/input/’.

This list of available files can be accessed through the Forester.file_names attribute, as shown below

[4]:

# Creating a new Forester object
myForester = Forester()
print(
    f"Files available in {myForester.directory}: {list(map(str,myForester.file_names))}"
)

Files available in ./data/input/: ['data/input/Secrest10-08_000000.csv', 'data/input/10_MediumCollection.csv', 'data/input/1_TenCyls.csv', 'data/input/6_LargeTree.csv', 'data/input/charlie_brown.csv', 'data/input/example_tree.csv', 'data/input/minimal_tree.ods', 'data/input/minimal_tree.csv', 'data/input/5_SmallTree.csv']

Optionally, a custom path may be passed to the Forester object, In which case, the Forester will look for files in the passed directory instead

[5]:

# Passing a custom directory to the Forester object will change the directory attribute
directory = "/data/test/"
myForester = Forester("data/test/")
print(
    f"Files available in {myForester.directory}: {list(map(str,myForester.file_names))}"
)

Files available in data/test/: ['data/test/10_MediumCollection.csv', 'data/test/1_TenCyls.csv', 'data/test/3_HappyPathWTrunk.csv', 'data/test/2_EZ_projection.csv', 'data/test/4_LargeCollection.csv', 'data/test/5_SmallTree.csv', 'data/test/6_LargeTree.csv', 'data/test/8_DripPathMidBranch.csv', 'data/test/7_DripPathAdjToTrunk.csv', 'data/test/9_DripOnTrunk.csv']

The ‘qsm_to_collection’ function can be used create CylinderCollections from a specified file.

[13]:

from src.canopyhydro.Forester import Forester
# Importing a QSM file as a CylinderCollection
myForester = Forester("./data/input/")
myForester.qsm_to_collection("example_tree.csv")

cylCollections = myForester.cylinder_collections
firstCollection = cylCollections[0]

print(
    f"Forester has {len(cylCollections)} CylinderCollection, imported from {cylCollections[0].file_name}"
)

2024.10.14 21:09:45.801 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/input/example_tree.csv
2024.10.14 21:09:46.438 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - example_tree.csv initialized with 9998 cylinders

Forester has 1 CylinderCollection, imported from example_tree.csv

If ‘All’ is provided as the file name, all of the files in the given directory will be read in as CylinderCollections.

(Note that this may require a significant amount of memory.)

[23]:

# Reading in all files in the directory as collections
myForester = Forester("./data/test/")
myForester.qsm_to_collection("All")
cylCollections = myForester.cylinder_collections
firstCollection = cylCollections[0]
print(
    f"""Forester created {len(cylCollections)} CylinderCollections, imported from the following files
      {list(map(lambda x: x.file_name,cylCollections))}"""
)

2024.10.14 21:13:20.160 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/10_MediumCollection.csv
2024.10.14 21:13:21.528 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 10_MediumCollection.csv initialized with 10501 cylinders
2024.10.14 21:13:21.530 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/1_TenCyls.csv
2024.10.14 21:13:21.538 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 1_TenCyls.csv initialized with 10 cylinders
2024.10.14 21:13:21.540 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/3_HappyPathWTrunk.csv
2024.10.14 21:13:21.556 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 3_HappyPathWTrunk.csv initialized with 120 cylinders
2024.10.14 21:13:21.558 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/2_EZ_projection.csv
2024.10.14 21:13:21.562 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 2_EZ_projection.csv initialized with 5 cylinders
2024.10.14 21:13:21.564 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/4_LargeCollection.csv
2024.10.14 21:13:24.783 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 4_LargeCollection.csv initialized with 51524 cylinders
2024.10.14 21:13:24.787 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/5_SmallTree.csv
2024.10.14 21:13:24.833 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 5_SmallTree.csv initialized with 517 cylinders
2024.10.14 21:13:24.837 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/6_LargeTree.csv
2024.10.14 21:13:30.074 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 6_LargeTree.csv initialized with 83474 cylinders
2024.10.14 21:13:30.076 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/8_DripPathMidBranch.csv
2024.10.14 21:13:30.095 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 8_DripPathMidBranch.csv initialized with 131 cylinders
2024.10.14 21:13:30.097 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/7_DripPathAdjToTrunk.csv
2024.10.14 21:13:30.110 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 7_DripPathAdjToTrunk.csv initialized with 117 cylinders
2024.10.14 21:13:30.112 |MainThread   | INFO    | CylinderCollection.py:291 -             from_csv() | model - Processing data/test/9_DripOnTrunk.csv
2024.10.14 21:13:30.127 |MainThread   | INFO    | CylinderCollection.py:320 -             from_csv() | model - 9_DripOnTrunk.csv initialized with 198 cylinders

Forester created 10 CylinderCollections, imported from the following files
      ['10_MediumCollection.csv', '1_TenCyls.csv', '3_HappyPathWTrunk.csv', '2_EZ_projection.csv', '4_LargeCollection.csv', '5_SmallTree.csv', '6_LargeTree.csv', '8_DripPathMidBranch.csv', '7_DripPathAdjToTrunk.csv', '9_DripOnTrunk.csv']

Putting all that we have learned together, you can see that all of the statistics available through canoPyHydro can be generated with the below 10 lines of code

[ ]:

forest = Forester("data/input/")
forest.get_file_names()
forest.qsm_to_collection(file_name="5_SmallTree.csv")
collection = forest.cylinder_collections[0]
collection.project_cylinders("XY")
collection.initialize_digraph_from(in_flow_grade_lim=-0.16)
collection.find_flow_components()
print("finished_find_flow_components")
collection.calculate_flows()
pickle_collection(collection)
